Embest SAM9G45 ARM9 (A9G4)

Producent: Embest

Cena brutto:
Produkt niedostępny

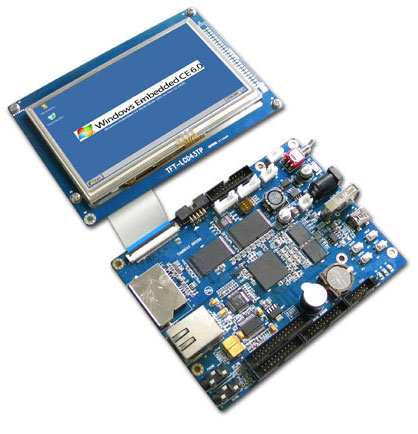

The ATMEL SAM9G45 Board produced by Embest is a full-featured evaluation board based on the ATMEL' new processor – AT91SAM9G45 which runs at up to 400MHz, with 128 Mbytes DDR2 memory and 256 Mbytes SLC NAND Flash. The board provides a wide range of peripherals, including a high-speed USB host/device port, an Ethernet 10/100 interface, two high-speed SD/MMC slots and a QVGA 320x240 LCD panel with Resistive touch screen. In addition, the board supports Linux, WinCE and Android OS and offers plenty of example applications under these three OS, makes engineers easy to develop their project based on this AT91SAM9G45 processor.

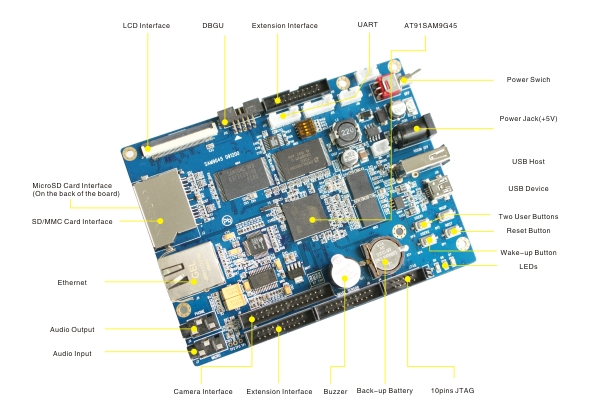

Block Diagram



Hardware Features

  • Support Linux2.6 and WinCE6.0 OS, with free relevant board support packages (BSPs)
  • Includes one 4.3" QVGA 480x272 LCD panel with Resistive touch screen
  • CPU: Atmel AT91SAM9G45 (ARM926EJ-S Core), 400MHz
  • On-chip memory: 64KB ROM & 64KB SRAM
  • External memory: 256MBNandFlash, 2MB NorFlash, 4MB DataFlash & two 64MB DDR2 SDRAM
  • Four UART interfaces
  • One high-speed USB Host Port
  • One high-speed Host Device Port
  • One JTAG Debug Interface
  • One 10/100 Ethernet interface
  • One SD/MMC card interface
  • One Micro SD card interface
  • One IIS Audio output port
  • One IIS Audio input port
  • Two User buttons
  • One Wake-up button
  • One Reset button
  • One User LED
  • One Power LED
  • 60 I/O Pins User Extention Interface
  • Power: 5VDC from connector, with back-up battery on board
  • Working temperature: -10 to 70 Deg C
  • Dimension: 120 x 90 mm

Software Features

There are plenty of software examples provided for you to test and debug this ATMEL SAM9G45 ARM9 board, all in source code. These software examples (as follows) can be debugged under the popular Keil MDK (Microcontroller Development Kit) environments and help with your design and development.
NO. Example Programs
1 WinCE6.0 OS Mapping, and the FirstBoot and Eboot set up from NandFlash
2 Linux2.6.30 source code and mapping, and the UBoot set up from NandFlash
3 Audio output test program
4 NandFlash read/write test program
5 NorFlash read/write test program
6 DDR2 SDRAM read/write test program
7 DataFlash read/write test program
8 EEPROM read/write test program
9 RTT Realtime timer test program
10 RTC Realtime timer test program
11 TWI Test program
12 DMA transfer test program
13 DBGU Serial interface communication test program
14 Ethernet test program
15 USB test program
16 Micro SD Card Read/Write test program
17 SD/MMC Card Read/Write test program

WinCE6.0 Software Resource

WinCE6.0 BSP Software Resource

Category

Function

Description

Bootloader

FirstBoot

Use to boot Eboot, provide source code and FIRSTBOOT.nb0 image

Eboot

Provide source code and Eboot.nb0 image
Eboot’ function include:
1.Ethernet download: Set Mac address, static IP or dynamic IP through DHCP, and you can download WinCE kernel through Ethernet download
2.Format NandFlash
3.Set boot delay time
4.Set WinCE image address in NandFlash, and run address of the RAM, and image’s size

Driver programs

Display

LCD driver,

EEPROM

EEPROM memory driver,

EMACB

Ethernet driver,

I2C

I2C driver

KeyPad

Button driver, support external matrix keyboard,

NandFlash

NandFlash driver,

SDHC

Micro SD driver,

Serial

Serial port driver,

Touchscreen

Touchscreen driver,

USB Host

USB Host driver, support EHCI and OHCI modes,

WAVEDEV

Audio driver, support WM8731, use I2C to transfer command, and use TWI to transfer data,

Application

The application WinCE brings

The functions which are included in WinCE:
1.Touchscreen calibration
2.Internet Explorer
3.Windows Media Player, support mp3, WMV files
4.Picture viewer, support the format of bmp, gif, jpg, png files
5.Internal input keyboard

The synchronization software in PC

Microsoft Activesync

This software is used to communicate between PC and WinCE. After build synchronization, you can transfer data from device to PC, or from PC to device through USB line. And you can also do remote debug using this software

The download tools in PC

HyperTerminal

Serial port debug tool

SAM-BA1.13+USB

SAM-BA download Eboot and Wince image to the NandFlash of the board through USB line

Linux2.6.30 Software Resource

Linux2.6.30 Software Resource

Category

Function

Description

Bootloader

AT91Bootstrap

Use to boot Uboot,

Uboot

Version: UBoot1.3.4

Function:
1.Support to erase, read and write NandFlash
2.Support to download images through Ethernet
3.Support to set and save environment parameters
4.Support to display or modify the memory data
5.Support to set bootm and bootargs

Kernel and device driver

Kernel

Kernel version: Linux-2.6.30

System clock

System master frequency: 400MHz

Display

Support many kinds of the LCD size, can set resolution ratio

Touchscreen

Touchscreen driver,

DM9000

DM9000 Ethernet driver,

HSMMC

SD/MMC/SDIO driver,

IIC

I2C driver,

SPI

SPI driver,

NANDFLASH

NandFlash driver,

SERIAL

Serial port driver

WAVEDEV

Audio driver, support AC97, the default driver is IIS (WM8731)

USB Host

USB Host driver, support USB keyboard, mouse, flash disk and so on

DMA

DMA driver,

GPIO

LED and button driver,

File system

Jffs2 file system

Support jffs2 file system

Cross-compiler

arm-none-linux-gnueabi

Cross tool chain,

GUI

angstrom

The functions of the GUI:
1. View picture
2.MPlayer, support to play mp3, wmv, avi
3.Calendar, Clock, Calculator
4.File manager
5.Terminal
6.Serveral games
7.Touchscreen calibration program

The download tools in PC

HyperTerminal

Serial port debug tool

SAM-BA1.13+USB

SAM-BA download Bootloader and Wince image to the NandFlash of the board through USB line

PACKING LIST

NO NAME / TYPE QTY DESCRIPTION
1 ATMEL SAM9G45 ARM9 Board 1 Target board; CPU: AT91SAM9G45
2 IDC10 Cable 1 10-10pins, 10cm, gap:2.00mm
3 Mini USB Cable 1 To supply power to the board or for downloading programs and debug
4 10/100 Ethernet Cable 1 Connect to the network
5 DB9-IDC10 Cable 1 DB9(F) to IDC(10 pins) cable
6 20Pins-10Pins JTAG Converter 1 Connect with 20pins or 10pins JTAG Debug Cables
7 TFT LCD Panel 1 4.3 inches QVGA 480x272 LCD panel with resistive touch screen
8 Power Adapter 1 12V, 1.25A, supply power to the board
