ServoMini

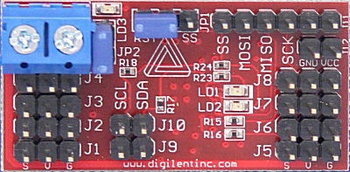

The Digilent ServoMini board is useful for programmable control of up to eight RC servos for both students and hobbyists.

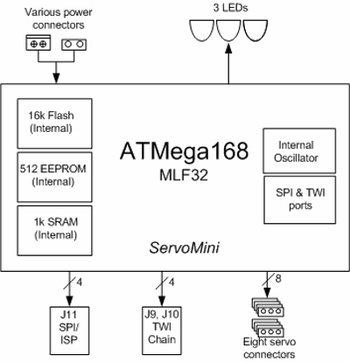

The ServoMini's versatile design and programmable microcontroller allows you to implement your own algorithms to control up to eight RC servos. This allows you to decide what method of control may be best suited for your application.
The ServoMini can establish serial communication with other devices using TWI protocol from Atmel, or SPI. This enables you to use the ServoMini as a slave device, freeing up the workload of the master device. Using TWI, many ServoMinis can be linked onto a communication bus, giving it the ability to expand with your needs.
The ServoMini can be powered using the screw terminal connector, the SPI port or J12. It supports a number of programming tools including Atmel AVR Studio 4, and WinAVR. The device can be programmed using one of Digilent's programming cables.
Key Features:
- 16KB Flash, 1KB SRAM, 512B EEPROM
- ESD and short circuit protection for all I/O pins
- Three LEDs
- Small size (0.8" X 1.6")
Download:
Code: 210-102
