Cerebot II

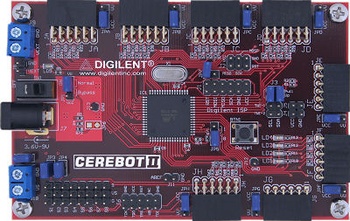

The Cerebot II board is a useful tool for embedded control and robotics projects for both students and hobbyists.
Its versatile design and programmable microcontroller lets you access numerous peripheral devices and program the board for multiple uses. The board has many I/O connectors and power supply options and supports a number of programming options including the free Atmel AVR Studio 4, and WinAVR.

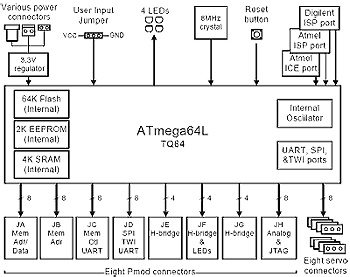

The Cerebot II has a number of connections for peripheral devices. It provides eight connectors for attaching Digilent Pmod peripheral modules. Digilent peripheral modules include H-bridges, analog-to-digital and digital-to-analog converters, speaker amplifier, switches, buttons, LEDs, as well as converters for easy connection to RS232, screw terminals, BNC jacks, servo motors, and more.
Key Features:
- 64KB Flash, 4KB SRAM, 2KB EPROM
- ESD protection and short circuit protection for all I/O pins.
- On-board voltage regulator
- Multiple flexible power supply jumper options
- Four LEDs
- Directly drives up to 8 R/C servos and 3 H-bridge modules
- Small size (4.3" X 2.8")
Download:
Code: 210-128
