Atmel AVR JTAGICE mkII
The AVR® JTAGICE mkII from Atmel® is a powerful development tool for On-chip Debugging of all AVR 8-bit RISC MCUs and AVR32 32-bit DSP/MCUs with IEEE 1149.1 compliant JTAG interface.
8-bit AVR:
The JTAGICE mkII also support devices with debugWIRE Interface. debugWIRE enables on-chip debug of AVR microcontrollers in small pin count packages, using only a single wire for the debug interface.
The AVR Studio online-help contains the most current information and a complete list of supported devices.
32-bit AVR32:
The JTAGICE mkII is supported by the AVR32 Studio.
Main Features
- AVR Studio Operated
- Full Emulation of All Analog and Digital Functions
- Full JTAG Programming Support
- Supports Multiple Devices in a JTAG Scan Chain
- USB 1.1 or RS-232 Interface to PC
- Full Support for Assembly and High Level Languages
- Program and Data Breakpoints
- All Operations and Breakpoints are Real Time
- Adapter for Direct Connection to STK500
- Upgrades are done from AVR Studio
- Target Voltage 1.8 – 5.5V
- Supply Voltage 9 – 12V, or powered from USB port

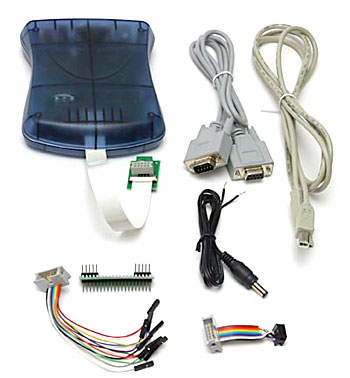

Package Contents
- JTAGICE mkII Quick Start User Guide
- JTAGICE mkII with flexcable and a Target Adapter Card with two 10-pin connectors
- USB cable
- 9-pin RS232 Cable
- Squid cable
- 10PIN to 6PIN Probe Adapter Cable
- DC Power Cable
- Atmel Technical Library CD-ROM with datasheets, application notes and software.
- STK500 JTAG Adapter
