EZ430-RF2500

TI MSP430 Wireless Development Tool

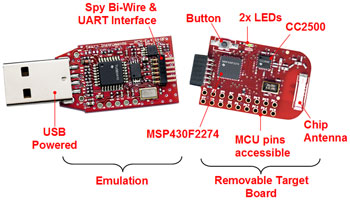

The eZ430-RF2500 is a complete wireless development tool for the MSP430 and CC2500 that includes all the hardware and software required to develop an entire wireless project with the MSP430 in a convenient USB stick. The tool includes a USB-powered emulator to program and debug your application in-system and two 2.4-GHz wireless target boards featuring the highly integrated MSP430F2274 ultra-low-power MCU. Projects may be developed and instantly deployed using the included battery expansion board and AAA batteries. All the required software is included such as a complete Integrated Development Environment and SimpliciTI, a propriety low-power star network stack, enabling robust wireless networks out of the box. The eZ430-RF2500 uses the MSP430F22x4 which combines 16-MIPS performance with a 200-ksps 10-bit ADC and 2 op-amps and is paired with the CC2500 multi-channel RF transceiver designed for low-power wireless applications.

The eZ430-RF emulator interface may be used with any Spy Bi-Wire enabled MSP430, such as the F22xx and F20xx series, and is fully compatible with the eZ430-F2013 and eZ430-T2012 target boards. The emulator interface can be used to download and debug your target applications, and can transmit serial data to your PC while in or out of a debug session.

---

Key Features:

• eZ430-RF2500T, wireless target board
  • MSP430F2274 – 32KB Flash, 1KB RAM, 1 USCI (UART, (2) SPI, I2C, IrDA), 10-bit 200 ksps, 2 Op Amps
  • CC2500 - 2.4 GHz, ISM band multi-channel low power transceiver
  • 2 LEDs
  • 1 pushbutton
• eZ430-RF, debugging interface
  • Supports development with all Spy Bi-Wire devices (MSP430F20xx and F22xx)
  • Supports MSP430 Application UART allowing serial communication to PC
• Removable USB stick enclosure
• Battery expansion board with 2 AAA batteries
• SimpliciTI, low power network stack
• Example wireless sensor network project measuring temperature, voltage and signal strength
• Integrated development environment which includes an assembler, linker, simulator, source-level debugger and limited C-compiler
• Full documentation on CD-ROM

---

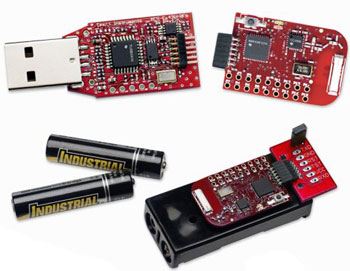

Content:

• Two eZ430-RF2500T target boards
• One eZ430-RF USB debugging interface
• One AAA battery pack with expansion board (batteries included)
• MSP430 Development Tool CD-ROM [documentation and development software for eZ430-RF2500: MSP430x2xx Family User’s Guide, eZ430-RF2500 User’s Guide, Code Composer Essentials (CCE), IAR Embedded Workbench (KickStart Version), eZ430-RF2500 Sensor Monitor (Code and Visualizer)]

---

Download:

• User Guide

---
