Embest SBC2410-III with 3,5" LCD-TFT (MH4A)

Cena brutto:

1 124,82 PLN

Na zamówienie

Sprzęt jest dostępny wyłącznie na zamówienie. Szczegółowe informacje są dostępne pod adresem sprzedaz@kamami.pl.

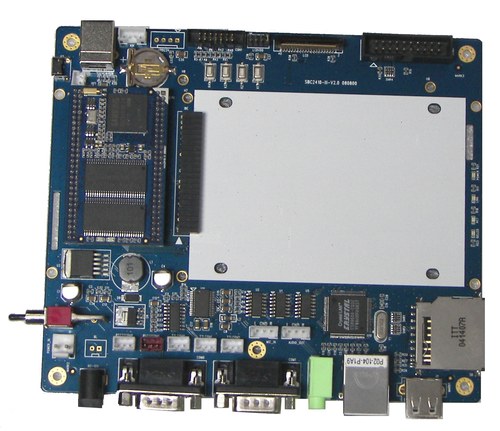

The SBC2410-III has a flexible design with a super tiny CPU board mounted on an expansion board. The CPU board has a Samsung S3C2410A processor, 64Mbyte Nand Flash, 32Mbyte SDRAM on it. The expansion board extends functions of the CPU controller with various peripherals including USB Host/ Device, IDE, serial ports, Ethernet, LCD, Audio, RTC, LEDs, Jtag, etc.

The board is capable of supporting Linux and WinCE OS and provided with Linux2.6 and WinCE5.0 BSP which would better offer users a fast time-to-market and a customizable and flexible reference platform.

SBC2410-III Board Overview
Samsung S3C2410A datasheet
Schematic

Features

Dimensions	135 x 158.5 mm (expansion board) 58 x 36 mm (CPU board)
Working temp.	-20~70 Celsius
Power supply	+12V
Processor	Samsung S3C2410A (capable of 266+ MHz operation)
Memory	64Mbyte Nand Flash 64Mbyte SDRAM
LCD	1 40-pin LCD Display interface (STN or TFT)
Ethernet	1 x LAN_10/100M Internet interface (CS8900)
Audio In/Out	1 x stereo output interface 1 x microphone input interface
Serial ports	3 serial ports (COM0: RS232/TTL, COM1: RS232/TTL, COM2: TTL)
USB ports	USB Host and USB Device
RTC	Battery backed
Jtag	1 x 20pin standard JTAG interface
LEDs	4 x Status LEDs
Buttons	1 x Reset Button 4 x User Buttons
AD	2-channel AD interface
IDE interface	IDE44 port: for 2.5" hard disk
Device support	1 x SD/MMC card socket

Software

OS	Item	Feature	Description
Linux2.6	Kernel	Version	Linux kernel 2.6.14
	Kernel	File system	ROM/CRAM/EXT2/FAT32/NFS/YAFFS
	Driver	Interrupt & Timer	System Interrupt & Timer
		Serial device	Three serial ports
		10/100M Ethernet	CS8900
		USB Host
		RTC
		Audio	UDA1341
		LEDs
		Buttons	User buttons
		Language	Multi-language Support
		SD/MMC
		LCD
	Embedded GUI	Qt/Embedded
	Network protocol & application	TCP/IP
		NFS
		Telnet Server
		File transfer	(FTPclient/server)
		Remote login
		Web server	Web server (HTTP v1.1, boa)
		Web based management suite	(Sample only)
WinCE5.0	Driver	Serial device	Serial port 0
		Flash memory	Nand Flash driver
		10M Ethernet	CS8900
		USB Host
		USB device
		LED
		RTC
		EINT
		LCD
		Audio
		SD/MMC card

Order Information

Order No.		MH4
Item		Embest SBC2410-III Single Board Computer
Hardware		One SBC2410-III board One Serial cable One net cable One USB cable 12V power adapter TFT LCD (Optional)
Software and Documents		- Documents (user manual, schematic drawing, Datasheet) - WinCE.net 5.0 BSP - Linux 2.6.14 BSP
