Embest SBC8100 (T6010092)

- TI OMAP3530 Processor based on 600MHz ARM Cortex-A8 core
- Flexible Design with a Tiny CPU Board mounted on Expansion Board
- Memory supporting 128MByte DDR SDRAM and 128MByte NAND Flash
- UART, USB, Ethernet, WiFi/Bluetooth, GPS, Camera, Audio, SD, Keyboard,...
- Supports 24-bit TFT LCD, VGA, S-Video/TV Output Display
- Supports Linux2.6.22 and WinCE 6.0

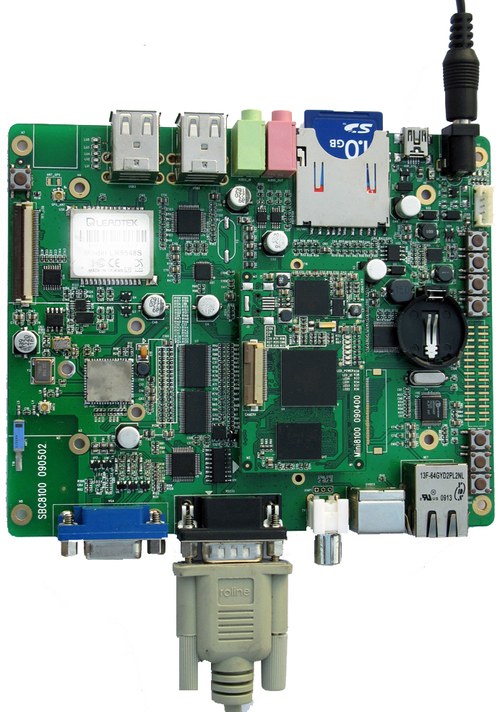

SBC8100	SBC8100 with 4.3 inch TFT LCD

Embest SBC8100 Single Board Computer Overview

 TI OMAP3530 datasheet

The SBC8100 Single Board Computer is a high-performance controller board introduced by Embest after Devkit8000. It is designed based on the Mini8100 processor card which integrates an OMAP3530 microcontroller, 128MByte DDR SDRAM, 128MByte Nand Flash, RTC, LEDs and one Camera interface on board. It is connected with SBC8100 expansion board through two 1.27mm space 90-pin biserial dip connectors.

In addition to those features provided by the CPU board Mini8100, the expansion board has exposed many of other features of the OMAP3530. It has integrated RS232, USB, Ethernet, WiFi/Bluetooth, GPS, Audio In/Out, Keyboard, LCD, VGA, S-Video/TV out, SD card and more other functions on board. So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.

Embest also offers a complete software development package to customers. The board supports linux 2.6.22 and WindowsCE 6.0 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the TI OMAP3530 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.



Features

Daughter Board (Mini8100)
Items	Description
Dimension	59mm x 37mm
Processor	TI OMAP3530 microprocessor with 600MHz ARM Cortex-A8 RISC Core (compatible with TI OMAP35x series processors)
Memory	128MB DDR SDRAM, 166MHz 128MB NAND Flash, 16bit
Camera	12-bit camera interface (30-pin FPC connector, support CCD or CMOS camera, support analog camera module CAM8000-A\ for option)
RTC	32768Hz RTC (Real-time clock)
LED	Six programmable status LEDs
Expansion Connector	Connect with expansion board, 16-bit data bus, LCD, McBSP, SD/MMC Card, UART and most I/O CPU lines are extended via two 1.27mm space 90-pin biserial dip connectors.
Mother Board
Items	Description
Dimension	144.9mm x 114.1mm
Power supply	+5V
Ethernet	10/100Mbps
LCD/TSP	TFT LCD and touch screen interface (50-pin FPC connector, support resolution up to 2048*2048)
VGA	Standard VGA interface, support 1024*768 resolution
S-Video/TV	S-Video display interface and TV out display interface (can only be selected to use one)
USB Host	Four USB Host ports
USB OTG	Can only be used as USB Device at present
Serial port	One three-wire RS232 Debug serial port
WiFi/BT	WiFi/Bluetooth (WG7210)
GPS	GPS module
Audio	Audio input and output slots
SD card	One standard SD card slot, supports 3.3V and 1.8V logic voltage
Keyboard	4*5 Keyboard interface
Buttons	Four buttons (Reset, Boot, User defined, On/Off)
Expansion Connector	2.54mm 30-pin SMT Female Pin Header, UART, I2C, SPI, ADC_IN, PWN_OUT are led out from this connector
OS	Windows CE 6.0 BSP
	Linux 2.6.22 BSP



Software

OS	Item	Feature	Description
Linux	Boot	Version	X-loader-1.41 U-boot 1.3.3
		Boot Mode	Boot Linux from SD card, NAND Flash or Ethernet
		Image update	Support updating image from SD card or Ethernet
		Logo update	Support updating logo
	Kernel and drivers	Version	Linux 2.6.22
		File system Format	Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS file systems
		Driver	Serial, RTC, Net, Flash, LCD, Touch screen, S-Video, TV out, VGA, Audio In/Out, SD, USB Host, USB OTG, Keypad, WiFi, GPS, LED
	File system	File system format	Ramdisk File System, UBI File System
		Function	Provided Lib (ALSA -lib, tslib, glibc), udev support
	Demo	Android	Google developed a platform based on Linux open-source mobile phone operating system.
		DVSDK	Support MPEG4, MPEG2, H264, mp3, aac audio/video formats and Codecs
WinCE	Boot	Version	x-load-1.41, eboot
		Boot Mode	Boot WinCE from SD card, NAND Flash or Ethernet
		Image update	Support updating image from SD card or Ethernet
	System	Characteristic	KITL kernel debug, Reboot, Watchdog, RTC
		Driver	Serial, RTC, Net, Flash, LCD, Touch screen, S-Video, TV out, VGA, Audio In/Out, SD, USB OTG, USB Host, Keypad, WiFi/BT, GPS, LED, VRFB, DSPLINKK/CMEMK, PWM, ADC, GPIO/I2C/SPI/MCBSP
		Function	Power Management (backlight drive, battery-driven, sleep/wake-up function)
			Hive registry support
			ROM file system support
		Software features	Mediaplayer 9.0, Word and Internet Explorer 6.0
			.NET Compact Framework 3.5

Relative OMAP3530 Products

Devkit8000 Evaluation Board

OMAP3530 Video Solution - VSS3530

Mini8100 Processor Card

Order Information

Order No.		T6010092
Item		Embest SBC8100 Single Board Computer
Hardware		One SBC8100 Single Board Computer        One 512MB SD card One Serial cable One net cable One USB cable (Type A Male to Type Mini-B Male) One S-Video cable One 5V@2A Power adapter Optional CAM8000-A Analog Camera Module (Only support linux, provided with Linux driver source code, supporting analog camera with BNC connector and PAL or NTSC video output)
Software and Documents		- Documents (user manual, Datasheet, schematic drawing of expansion board in PDF format) - WinCE.net 6.0 BSP - Linux 2.6.22 BSP
