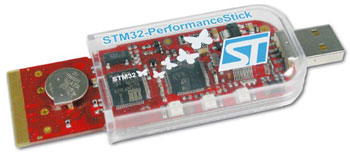

STM32-PerformanceStick
The STM32-PerformanceStick is a complete, low-cost evaluation and development package that provides a fast and easy introduction to the capabilities of ST's ARM Cortex-M3 core-based STM32 family of microcontrollers. It is specifically designed to help application designers explore STM32 features and performance characteristics (low power modes, clock controls, wakeup states, etc.), but can also be connected to extension boards with hardware features for evaluation of device peripherals.
The STM32-PerformanceStick includes several sample applications implementing device peripherals (USB, CAN, ADC, ...) and Hitex DashBoard interface that allows users to modify device configuration (power modes, peripheral power, clock, PLL, RTC etc.) and view the impact on performance indicators and application execution in real time.
The C source code for all sample applications is provided so that users can modify them, and then rebuild and debug the applications.
The software package includes an unlimited Hitex toolchain tailored to the STM32-PerformanceStick. Software tools include the full version of the TASKING VX C/C++ compiler for ARM for building/rebuilding the applications and Hitex HiTOP5 development environment for code editing, device programming and application debugging.
Key Features:
- STM32F103R microcontroller with ARM Cortex-M3 core up to 72 MHz/90DMips, 128kByte Flash and 20kByte SRAM, USB full speed device, CAN and UART, NVIC, timers, I/Os, PWM, ADC
- DashBoard interface for modifying STM32 parameters and viewing performance indicators
- In-circuit debugging/programming via dedicated USB connection to the host PC
- Complete Hitex toolchain: HiTOP5 for programming and debugging, TASKING VX C/C++ compiler for ARM (no code size limit)
- C source code for all evaluation applications and libraries including: USB mouse, Vectored interrupt controller and timer, ADC and I/Os, CAN monitor and generator, STM32 library from STMicroelectronics
- Full documentation including quick start guide
