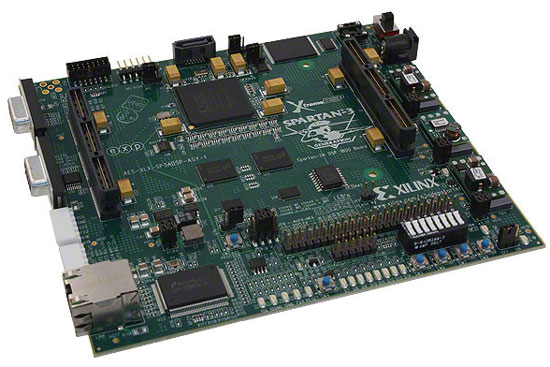

Hardware Xilinx Spartan-3A DSP 1800A XtremeDSP Starter Kit
The Spartan-3A Starter Platform provides a platform for engineers designing with the Xilinx Spartan-3A DSP FPGA. The board provides the necessary hardware to not only evaluate the advanced features of the Spartan-3A DSP but also to implement complete user applications using peripherals on the Spartan-3A DSP Starter Platform and/or EXP modules plugged into EXP expansion connectors on the Spartan-3A DSP Starter Platform.
Target signal processing applications in these markets: wireless, automotive, consumer, multimedia, video, imaging, industrial, medical, military/aerospace, servers, storage, and telecom/datacom.
Key Features:
- Xilinx Devices: XC3SD1800A-4FGG676C Spartan-3A DSP FPGA
- Clocks:
- 125 MHz LVTTL SMT Oscillator
- LVTTL Oscillator Socket
- 25.175 MHz LVTTL SMT Oscillator (Video clock),
- 25 MHz Ethernet clock (accessible to FPGA)
- Memory:
- 128 MB (32M x 32) DDR2 SDRAM
- 16Mx8 Parallel / BPI Configuration Flash
- 64 Mb SPI Configuration / Storage Flash (with 4 extra SPI selects)
- Interfaces:
- 10/100/1000 PHY
- JTAG Programming/Configuration Port
- RS232 Port
- Low-cost VGA
- 4 SPI select lines
- Buttons and switches:
- 8 User LEDs
- 8-position User DIP Switch
- 4 User Push Button Switches
- Reset Push Button Switch
- User I/O and expansion:
- Digilent 6-pin header (2)
- EXP Expansion Connector (2)
- 30 pin GPIO Connector - can be used for System ACE™ Compact Flash daughter card (not included)
- Configuration and Debug:
- JTAG
- System ACE Module Connector
- Eridon debug connector (SATA)
