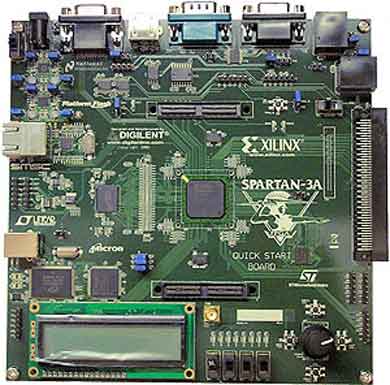

Xilinx Spartan-3A Starter Kit.
The Spartan-3A FPGA Starter Kit is a complete development board solution giving designers instant access to the capabilities of the Spartan-3A family.
- Delivers instant access to Spartan-3A FPGA device features such as SUSPEND power-saving mode, high-speed I/O options, DDR2 SDRAM memory interface, commodity flash configuration support, and FPGA/IP protection using Device DNA
- Includes board, power supply with universal adaptors, programming cable, quick-start guide, evaluation software, collateral, and more.
- Provides RoHS compliant, complete development solution
| Key Features: |
 |
Xilinx Devices: Spartan-3A (XC3S700A-FG484) and Platform Flash (XCF04S-VOG20C) |
|
Clocks: 50 MHz Crystal Oscillator on-board, open slot for optional user-installed clock |
|
Memory: 4 Mbit Platform Flash PROM, 32Mx16 DDR2 SDRAM, 32 Mbit parallel Flash, 2-16 Mbit SPI Flash Devices |
|
Analog Interface Devices: 4-channel D/A converter, 2-channel A/D converter, Signal Amplifier |
|
Connectors and Interfaces: Ethernet 10/100 PHY, JTAG USB download port, two 9-pin RS-232 Serial Port, PS/2-style mouse/keyboard port, 15-pin VGA connector capable of 4,096 colors, one FX2 100-pin and two 6-pin expansion connectors, 20 user I/O available on standard header pins, stereo mini-jack for PWM audio. Rotary/push button function switch, eight individual LED outputs, four slider switches, four push-button switches. |
|
Display: 16 character, 2-Line LCD |
| Kit Includes: |
|
Development board |
|
Power Supply 100-240V, 50/60 Hz with universal plug adaptors |
|
Evaluation software: Xilinx ISE WebPACK or ISE Foundation Evaluation |
|
Quickstart Guide |
|
Programming Cable |
|
Product Collateral |
|
