HW-CRII-SK-G

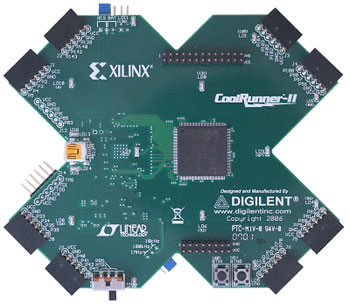

Xilinx CoolRunner-II Starter Kit

This design kit is an ideal platform to evaluate and implement your CPLD design. It allows easy connection to a variety of peripheral modules through eight independent edge connectors. Over twenty application modules are currently available, including design applications, such as motor control, keypad scanning, ADC interfacing, and GPIO expansion. The starter kit has a USB interface for development and programming that allows easy access from any laptop. A temperature and power monitor is built-in for development of low power applications. Xilinx also provides free reference designs to make it easy to demonstrate control over multiple peripheral devices.

The ideal low power design platform

Key Features:
	XC2C256 CoolRunner-II in TQ144 package
	USB Interface
	Eight 6-pin connectors for standard peripheral modules
	One 26-pin and one 16-pin connector for daughter boards
	Built-in temperature and power monitor
	Free Reference Designs

Targeted Application:
	Low Power Design
	Logic Consolidation
	Memory Control and Interfacing
	Keypad Scanning
	Display Control
	Hard Disk Control
	Microprocessor Interface
	State Machines
	Pulse Modulation
	ADC Interfacing
	Stepper Motor Control
	RFID Telemetry
	Interrupt Control
	GPIO Expansion
	LED Driver
	Bluetooth or Wi-Fi Interface
	Power or Heat Monitor
	MP3 Player
	UART
	Smart Card Reader

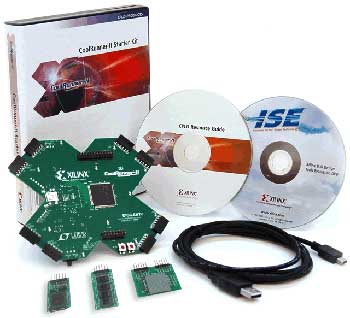

This Product Includes:
	X-Board with XC2C256-TQ144
	Resource CD, including reference manual, software, application notes, web seminars, and data sheets
	USB Cable
	ISE WebPACK CD
	PMod-PS2 (PS2 module to connect keyboard or other PS2 device to X-Board)
	PMod-SSD (Seven Segment Display module)
	PMod-SWITCH (Switch module to provide interface to 4 slide switches)

Do pobrania
	Reference Manual [PDF]
	Schematics [PDF]
